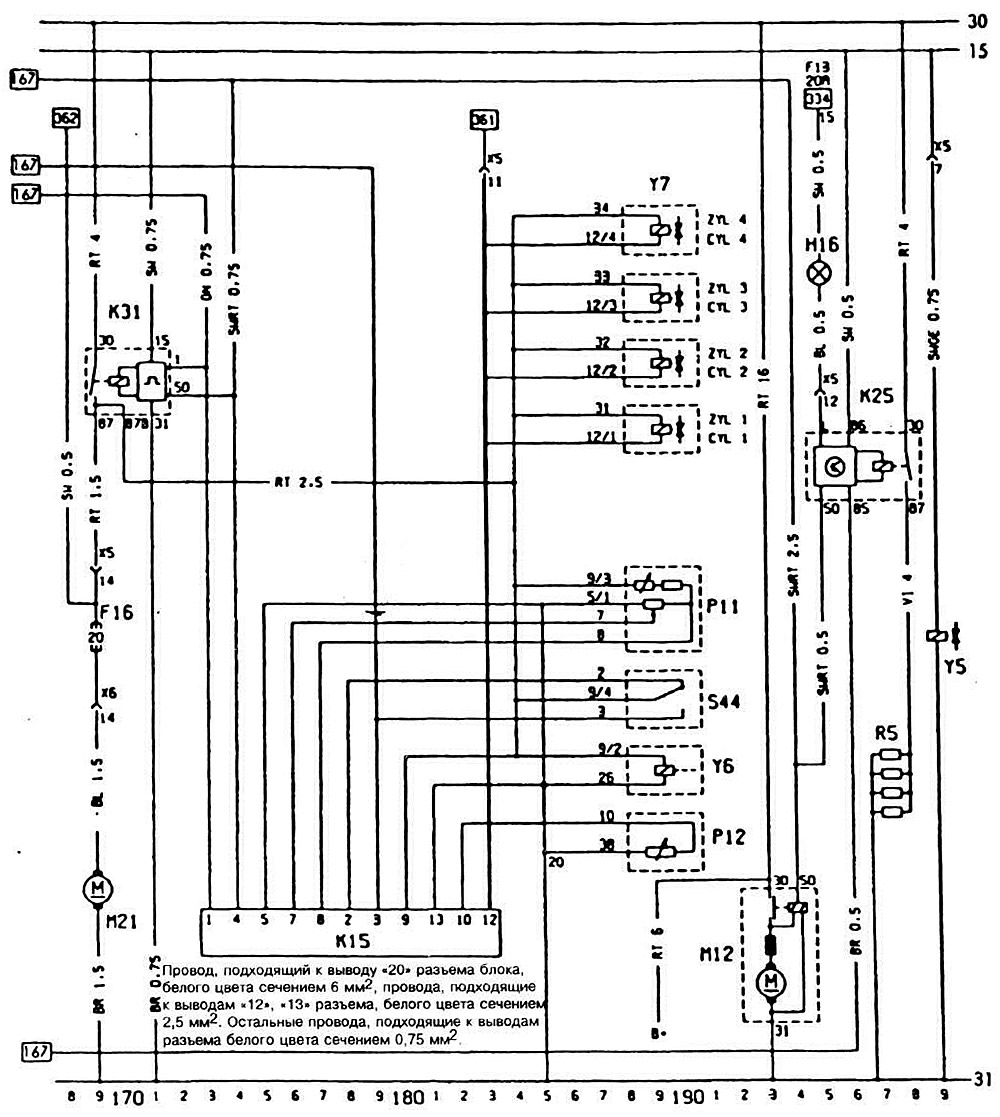

| Designation on the diagram | Name | Position on the diagram |
| F16 | Fuse in the mounting block | 169 |
| H16 | Glow plug indicator light | 195 |
| K15 | Electronic control unit of the fuel injection system | 178 |
| K25 | Pre-heating time relay | 198 |
| K31 | Fuel injection system fuel pump activation relay | 170 |
| M12 | Diesel engine starter | 193 |
| M21 | Fuel injection system fuel pump electric motor | 169 |
| R11 | Air flow meter | 189 |
| R12 | Coolant temperature sensor | 189 |
| R5 | Glow plugs | 197 |
| S44 | Throttle position sensor | 189 |
| Y5 | Fuel system electromagnetic valve | 199 |
| Y6 | Additional air supply valve | 189 |
| Y7 | Electromagnetic injection nozzles | 190 |
| X5 | Engine Wiring Harness Connector | |
| X6 | Connector of the wiring harness to the rear of the car |
