Fuse and relay mounting blocks (Opel Zafira A)

Fuse links, fuses and relays for switching on the vehicle's electrical equipment are installed in mounting blocks located in the engine compartment and on the left end of the instrument panel.

Note: The fuse and relay layout diagrams are printed on the covers of the mounting blocks, and the fuse and relay mounting locations are colored to match the rating and type of fuse or relay.

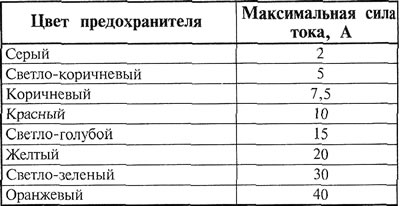

Table 14.7





Table 14.8. Fuses installed in the block located in the passenger compartment and the circuits they protect



Source is on this resource Opelbook.ru



* Depending on the configuration.
** For vehicles manufactured before 2000.
*** On cars manufactured after 2000, including fuses F42-F50

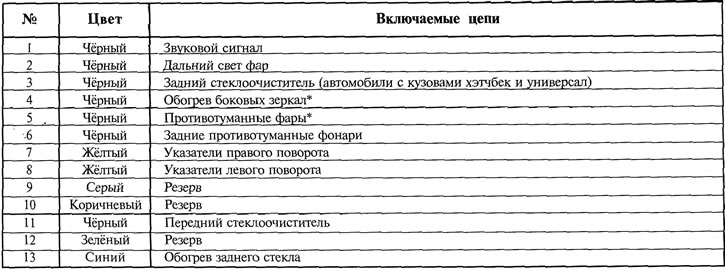

Table 14.9. Relays and circuits they switch on

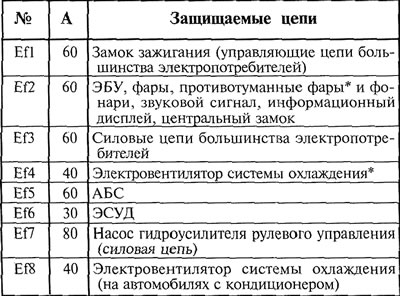

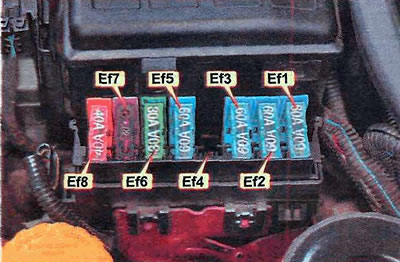

Table 14.10. Fuses installed in the engine compartment and the circuits they protect





* Installed on some vehicles depending on the year of manufacture and configuration.

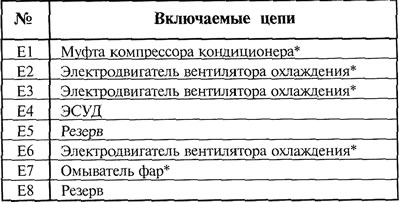

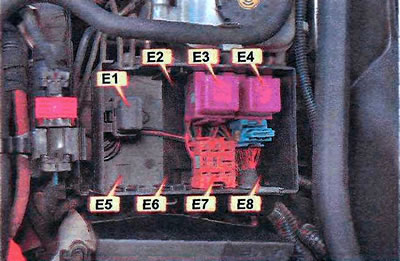

Table 14.11. Relays installed in the engine compartment and the circuits they switch on



* Installed on some vehicles depending on the year of manufacture and configuration.
