Side turn signal — removal, bulb replacement and installation (Opel Zafira A)

The execution is shown on the example of the Astra model, on the Zafira model it is performed similarly.

Removal

1. Prepare the car for work (see "Preparing the car for maintenance and repair"),

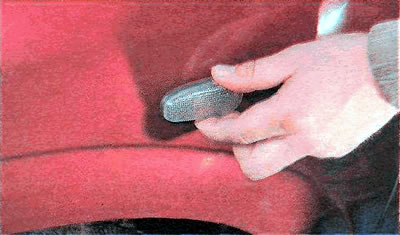

2. Move the side turn signal forward and remove it from the hole in the wing.

Note: If you are removing the side turn signal only to replace the bulb, you may not need to perform the following operation.

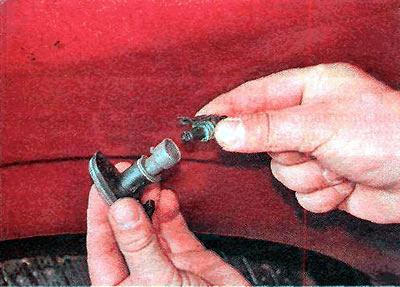

3. Disconnect the wiring harness connector from the lamp socket and remove the side turn signal.

Replacing the lamp

1. Remove the side turn signal from the wing (see above).

(Material was taken from a resource: www.opelbook.ru)

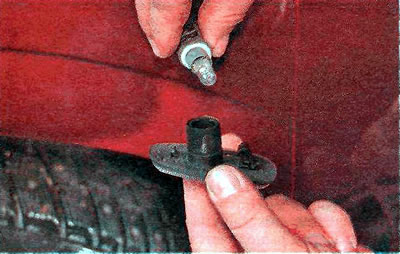

2. Turn the lamp holder counterclockwise and remove it from the indicator.

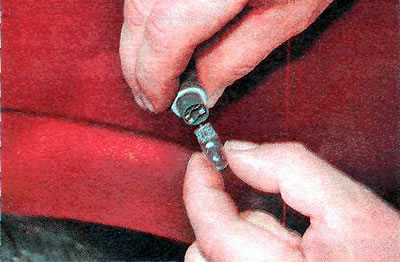

3. Remove the faulty lamp from the socket and replace it.



4. Install the new bulb into the socket and the socket into the side turn signal lamp.

Installation

We install the side turn signal in the reverse order.
