Zafira rear interior light (Opel Zafira A)

Removal and installation

1. Prepare the car for work (see "Preparing the car for maintenance and repair").

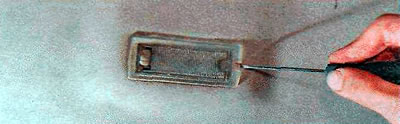

2. Pry up the lampshade with a thin slotted screwdriver and remove it from the upper side handle.

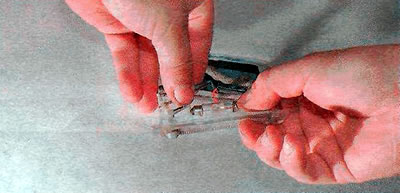

3. Disconnect one... from the lampshade.

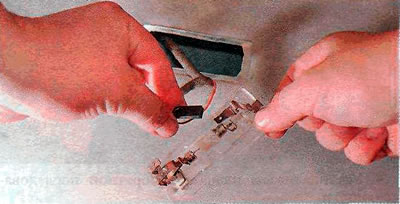

...and the second pad of the wiring harness and remove it.



4. Install the lampshade in reverse order.

Replacing the lamp

1. Remove the lampshade from the upholstery (see above).

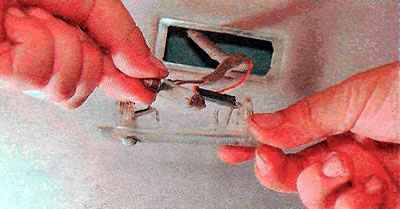

2. Press the spring contact and remove the faulty lamp from the socket.



3. Install the parts in reverse order.
